Description

Marking, Hemostasis, Suturing | One Solution, Three Applications

The Anrei Single Use Rotatable and Repositionable Hemoclip is designed for three primary applications in GI endoscopic procedures: marking, bleeding-stop (hemostasis), and wound suturing.

Technical Specifications & Design

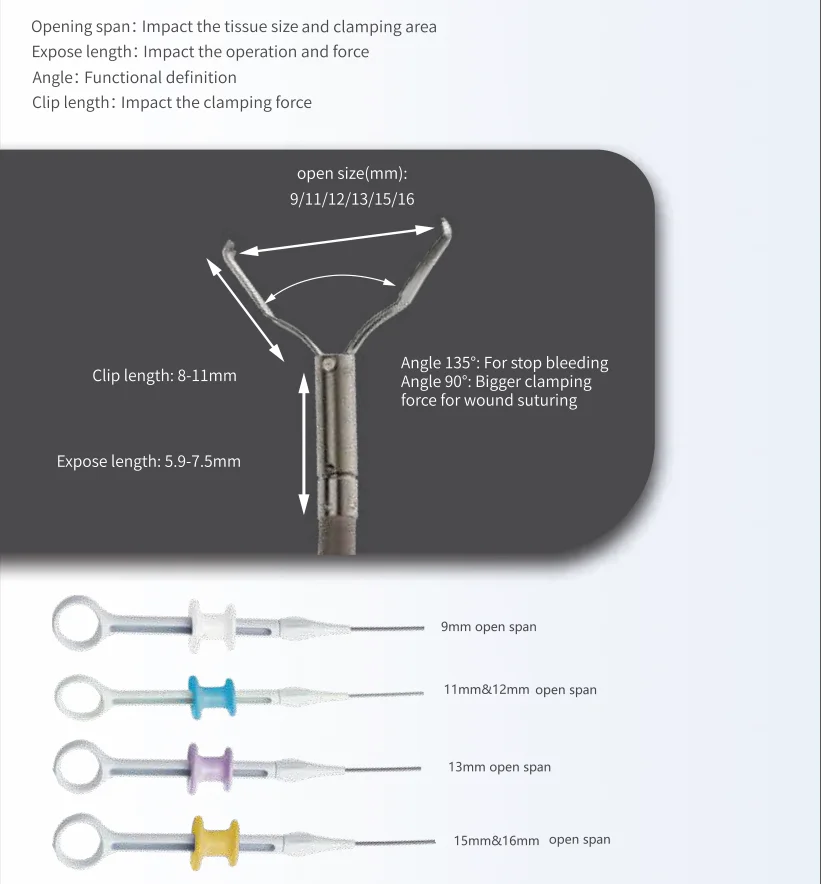

The performance of this device is defined by four key parameters:

Open Span: Determines the amount of tissue the clip can grasp and the clamping area. Available in sizes: 9, 11, 12, 13, 15, and 16 mm.
Clip Length: Ranges from 8 to 11 mm, directly impacting the grasping and clamping force.
Expose Length: Ranges from 5.9 to 7.5 mm, influencing operational handling and the force applied during the procedure.
Angle: Defines the specialized function of the clip:
- 135° Angle: Optimized for bleeding-stop (hemostasis)
- 90° Angle: Provides stronger clamping force for wound suturing

Size Selection Guide

Open Span	Suggested Application
9 mm	Small lesions, precise marking
11 & 12 mm	Moderate bleeding, standard wounds
13 mm	Closure of larger wounds
15 & 16 mm	Extensive tissue defects, large wound suturing
